How to Choose a Roof Underlayment Material
Roof underlayment (also known as an underlayer) is a material installed beneath the roof covering. Its function is to protect the roof area from leaks. The type of underlayment material used can be adjusted to the area and condition of each building.
In tropical climates with heavy rainfall especially, the choice of roof underlayment material needs to be considered from the start. This article discusses the roof underlayment materials that are commonly used and explains when GRC board is worth considering.
What Is Roof Underlayment and What Does It Do?
Roof underlayment is a part that often goes unnoticed because it is no longer visible once the building is finished. It is the base layer installed on top of the roof frame to support the roof covering. It also provides a flat surface that bears loads and protects the interior of the building. Its main function is to add a second layer of protection if the roof covering leaks.
Because roof underlayment is located close to moist vapor, the material should be water-resistant, mold-resistant, and not prone to deterioration.
Commonly Used Roof Underlayment Materials
1. Plywood
Plywood is easy to find and relatively quick to install. However, because this type of material is made of wood, it is prone to absorbing water when exposed to seepage. Repeated moisture makes it susceptible to rot and mold, and it becomes a target for termites.
2. Wooden Planks
Wooden planks are strong and have long been used. This material requires maintenance, and it expands and contracts with the weather. There is also a risk of termite attacks at any time.
3. GRC Board
GRC board is made from a cement base. This material is asbestos-free, mold-resistant, termite-resistant, and moisture-resistant. It is a suitable choice for roof underlayment applications, especially in areas exposed to water, such as roofs. Each large GRC board sheet comes in a maximum size of 1220 mm wide x 2440 mm long.
When to Use GRC board for Roof Underlayment
GRC board is worth considering for roof underlayment when:
- The building is in an area with high rainfall or humidity, as this material is moisture- and mold-resistant
- You want to reduce the risk of termites in the roof area
- You want faster and more efficient installation, because each sheet is large and ready to be installed on the frame
- You want to combine materials within one building, since GRC board products can be combined for walls, ceilings, partitions, facades, roof underlayment, and more
The recommended GRC board thickness for roof underlayment is 8 mm. For complete GRC board specifications, click the Brochure menu.
Conclusion
Roof underlayment may not be visible, but it has a considerable impact on a building's durability. With its moisture-, mold-, and termite-resistant properties, GRC board is a recommended choice for a longer-lasting roof. Consult our expert team today to calculate your building's requirements.
Read More
GRC board and Decorative GRC Size Guide
Before buying materials, the first question that always comes up is about size. This includes questions such as: what is the standard size of a GRC board sheet, what thickness is suitable for installing ceilings and walls, and how many sheets need to be ordered for a given area. Miscalculating can lead to several problems, such as a shortage of material, a lot of offcuts, and an untidy installation.
Standard GRC board Sheet Sizes
Common GRC board sheet sizes range from 1200 mm wide x 2400 mm long up to a maximum of 1220 mm wide x 2440 mm long. These large sheets are ready to be installed on a prepared frame, making the installation of walls, ceilings, partitions, floor underlayment, and roof underlayment faster.
Decorative GRC Sizes by Series
As the building materials industry has developed, GRC board has grown to include several Decorative GRC Series with more variety in models and types.
a. GRC Plank Series: Available from 8 mm thick x 100 mm wide x 2440 mm long up to a maximum of 9 mm thick x 300 mm wide x 4000 mm long
b. GRC Interlock Series: Available from 10 mm thick x 150 mm wide x 3000 mm long up to a maximum of 10 mm thick x 300 mm wide x 3000 mm long
c. GRC Deck Series: Available from 20 mm thick x 200 mm wide x 2400 mm long up to a maximum of 20 mm thick x 300 mm wide x 3000 mm long
d. GRC Deco Panel: Available from 6 mm thick up to a maximum of 20 mm thick x 1200 mm wide x 2400 mm long
e. GRC Deco Line: Available from 8 mm thick up to a maximum of 20 mm thick x 1220 mm wide x 3000 mm long
f. GRC T-Line: Available in 10 mm thick x 200 mm wide x 3000 mm long
g. GRC Concrete Panel: Available from 10 mm thick x 600 mm wide x 600 mm long up to a maximum of 10 mm thick x 600 mm wide x 1200 mm long
h. GRC Rafter Stick: Available from 20 mm thick x 50 mm wide x 2400 mm long up to a maximum of 20 mm thick x 100 mm wide x 3000 mm long
i. GRC Ecoline: Available in 8 mm thick x 200 mm wide x 3000 mm long
How to Calculate GRC board Requirements
Example 1: A 24 m² wall using GRC board sheets of 1200 mm x 2400 mm
- 24 m² ÷ 2.88 = 8.33 sheets, rounded up to 9 sheets
- With a 10% allowance: 8.33 x 1.1 = 9.17, rounded up to 10 sheets
Example 2: GRC Rafter Stick lattice on a surface 3 m wide
- Number of sticks = surface width ÷ (stick width + spacing between sticks)
- With an example spacing of 20 mm: 3000 ÷ (100 + 20) = 25 sticks
- The spacing between sticks can be adjusted to suit the design: the closer together they are, the more solid the look; the wider apart, the lighter it appears visually
GRC board offers the same advantages as a building material: it is asbestos-free, mold-resistant, termite-resistant, moisture-resistant, easier to install, and highly versatile. Products in different sizes can be combined within a single building, from walls, ceilings, partitions, facades, and cladding to lattices, floor underlayment, and roof underlayment.
If you need help calculating your GRC board or Decorative GRC requirements, contact our expert team today.
Read More
A Wood Look Facade Without Termite Worries at Umma Arsa Housing
The facade is the first part of a home that catches the eye. Many developers and homeowners now pay more attention to facade decoration materials, not just paint color. Wood-toned brown still remains a favorite, but for long-term durability, real wood needs regular and periodic maintenance.
One solution can be seen at the Umma Arsa housing complex in Depok. The area offers attractive home designs, some of which use GRC Rafter Stick board as facade decoration. This article discusses why GRC board is worth considering, along with its size specifications.
GRC Rafter Stick Material from GRC Board

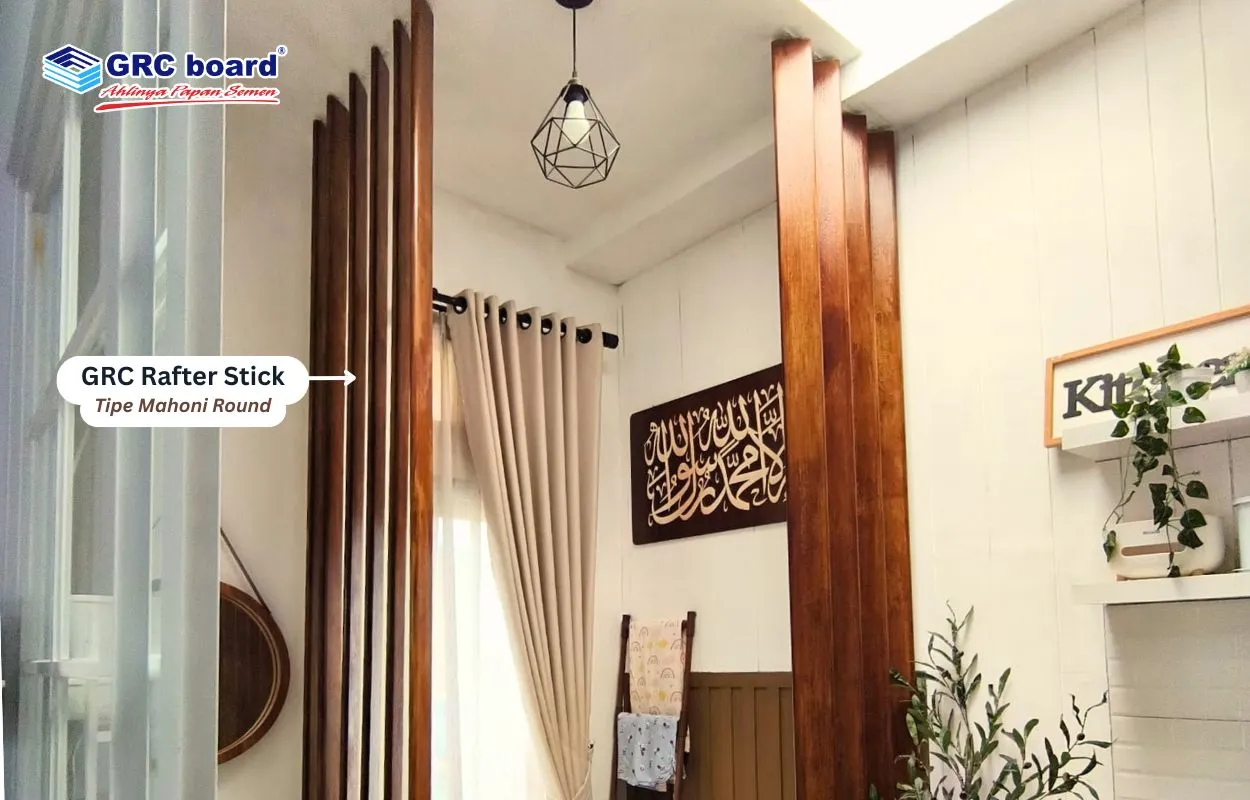

GRC Rafter Stick is a GRC board product shaped like long sticks. This material is designed to be installed in repetition like a lattice, a room divider, or as decoration for facades, exterior walls, and other exterior elements. The GRC material itself is made from a cement mixture, making it more resistant to rain, moisture, termites, and mold compared to other natural materials.
Specifically at this housing complex, GRC Rafter Stick is used in two different designs. In one, the sticks are installed in repetition at uniform spacing, so from a distance they look like a single, continuous striped wood panel, right on the outermost part of the house. In the other, it serves as wall decoration, specifically at the vehicle parking area, or carport.
This material is often referred to as GRC wood-motif board, because the surface detail on both sides resembles mahogany wood grain. GRC Rafter Stick board comes in two sizes: 20 mm thick x 100 mm wide x 2400 mm long, and 20 mm thick x 100 mm wide x 3000 mm long. For price calculations
Why Is GRC Board Suitable for Exterior Walls and Facades?
This part of the house is exposed to rain and heat every day. Materials used here need to withstand those conditions. The advantages of GRC board products include:
- Weather-resistant, with better resistance to rain and moisture
- Termite-resistant, since its cement base is not a food source for termites
- Mold-resistant, since its denser surface makes it harder for mold to grow
- Sturdier, minimizing the need for routine maintenance
The facade decoration at Umma Arsa housing shows that a natural-looking finish can be achieved without the risk of termites and rot. With GRC Rafter Stick, facade decoration can be made neater, weather-resistant, and easy to maintain. Consult your project's GRC board needs with our expert team today!
Read More
An Industrial Themed Home with GRC Concrete Panel
Interior design has become one of the main draws of a home these days. GRC board walls are one approach that's increasingly being chosen for this. GRC board material is now more varied and flexible, able to be adapted to any design concept, from modern minimalist to contemporary industrial styles. One real example of this GRC wall application can be seen in the home of content creator couple Vina and Jawir. They entrusted their home's interior walls to GRC board material.
The GRC material used is the GRC Concrete Panel type, one of the standout GRC materials known for delivering a modern look without going through a complicated casting process. This article will cover how the GRC material was applied, the size of the GRC Concrete Panel used, and why this material suits a variety of home interior concepts.
GRC board Walls with an Industrial Touch
This comedic content creator couple wanted to refresh the atmosphere of their home. Previously, their wall condition had developed stains, especially since the original paint color was white. This could have been solved with a fresh coat of paint, but they decided to add a decorative touch that was both easy and quick to apply. One option was installing GRC material in the GRC Concrete Panel type.
The GRC Concrete Panel size used on this home's walls is 10 mm thick x 600 mm wide x 600 mm long. For a few spots, such as near the light switch and the stair corner, they cut the panels so the result still looked neat and solid. This GRC material was then painted in a brownish taupe color. The combination pairs perfectly with the brown wood-toned stair steps and black iron railing.
The main advantages of this GRC material are that it's easy to install yourself, has a faster installation process, and is resistant to termites, mold, and dampness. This means it can last longer and stay sturdy for decorating a home over time.
Inspired by the look of the GRC Concrete Panel walls in their home? Consult your choice of GRC board panels for your home decoration with an expert today!
